ZOOM TAC-8 Thunderbolt Audio Interface

THE ZOOM TAC-8
Thunderbolt Audio Converter

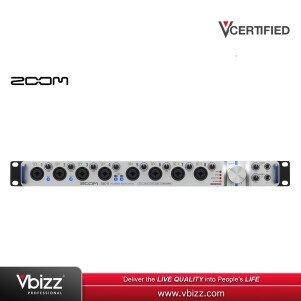

The rack-mountable ZOOM TAC-8 audio interface is designed to act as the central hub in both professional and home environments. This audio accessory provides 8 analog inputs and 10 analog outputs, 10 digital inputs and outputs (in both S/PDIF and ADAT Optical formats), and both Word Clock and MIDI I/O.

Whether you want to record large scale multi-channel 24-bit/192 kHz sessions in your studio without worrying about latency or you want to bring your onstage performance to new heights, the TAC-8 allows you to take full advantage of today's latest technology.

Recording
With 8 analog inputs, 10 digital inputs, and the ability to record and play back 8 channels simultaneously, the TAC-8 allows you to record what you want, when you want. Lay down full backing tracks—drums, bass, guitar, keyboards, even vocals—at the same time, or go big with an 8-mic drum setup, or anything in-between. Thunderbolt's speed ensures you won’t have to deal with latency issues, and the TAC-8's built-in software mixer and flexible output options let you customize each session to your needs.

Thunderbolt Speed.
Revolutionary Recording.
Thunderbolt technology opens up new doors for creators. More than twice as fast as USB 3.0—not to mention twenty times faster than USB 2.0 and twelve times faster than Firewire 800—Thunderbolt is the interconnection technology of the future. Co-developed by Apple and Intel Labs, it allows signal to be transferred at an incredibly fast 10 gigabits per second, which means virtually no latency. Thunderbolt interfaces such as the TAC-8 are also unaffected by computer jitter (slight variations in timing).

Analog I/O
The TAC-8 provides a wide variety of both analog and digital connectors. Eight front panel combo XLR/TRS inputs accept mic- and line-level signals. Inputs 1 and 2 can also accept instrument-level signal from electric guitars and basses. Dedicated input gain controls and Clip LEDs make it easy to set optimum input levels, and a Phantom Power switch enables the use of condenser microphones.

Features:
Analog I/O
The TAC-8 provides a wide variety of both analog and digital connectors. Eight front panel combo XLR/TRS inputs accept mic- and line-level signals. Inputs 1 and 2 can also accept instrument-level signal from electric guitars and basses. Dedicated input gain controls and Clip LEDs make it easy to set optimum input levels, and a Phantom Power switch enables the use of condenser microphones.

Dual balanced analog ¼" TRS output jacks allow you to connect the TAC-8 to amplifiers or self-powered speakers, and there are also 8 discrete balanced TRS analog line outputs for multichannel monitoring or connection to external effects devices. A large front-panel Output knob offers fast control over output level, and there are two independent ¼" stereo headphone jacks, each with its own dedicated volume control, for private monitoring.
